Tablo

Русский · English

A web app for students: upload a photo of your timetable, and AI turns it into an editable schedule with per-subject progress trackers you can share by link.

Status: coursework project (2026), completed · live at tablo.deev.su

Stack: Python 3.12 · Flask · SQLAlchemy + Alembic · PostgreSQL · OpenAI-compatible Vision API · Playwright · Jinja2 + vanilla JS

Features

• Timetable recognition from a photo or scan
• Editing of schedules, subjects and classes; periods may span New Year
• 11 tracker types (attendance, grades, deadlines, day streaks, etc.) on a drag-and-drop grid
• Tracker generation from a description such as "8 labs and an exam"
• Link sharing: view, edit, or copy as a template
• Merging several schedules into one, with classes of the same subject combined
• Export to JSON, CSV, PNG and a print-ready version

Quick start

git clone https://github.com/EDeev/tablo.git && cd tablo
cp .env.example .env      # set SECRET_KEY and your AI provider key
docker compose up -d

Open http://localhost:8000. Compose starts the app and PostgreSQL; migrations run on startup. Prebuilt image: docker pull ghcr.io/edeev/tablo or docker pull dcr.deev.su/edeev/tablo.

Installing without Docker

Requires Python 3.11+ and PostgreSQL.

python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
playwright install --with-deps chromium   # for PNG export
cp .env.example .env
flask --app run db upgrade
python run.py

Configuration

Variable	Purpose
SECRET_KEY	Flask session signing; the app will not start without it
DATABASE_URL or DB_HOST, DB_PORT, DB_NAME, DB_USER, DB_PASSWORD	PostgreSQL connection
OPENAI_API_KEY	AI provider key
OPENAI_BASE_URL	OpenAI-compatible API URL, if not OpenAI
OPENAI_MODEL	model for recognition and trackers, gpt-4o by default

Important

Without OPENAI_API_KEY, timetable recognition and tracker generation are disabled. Everything else works: you can create and edit a schedule manually.

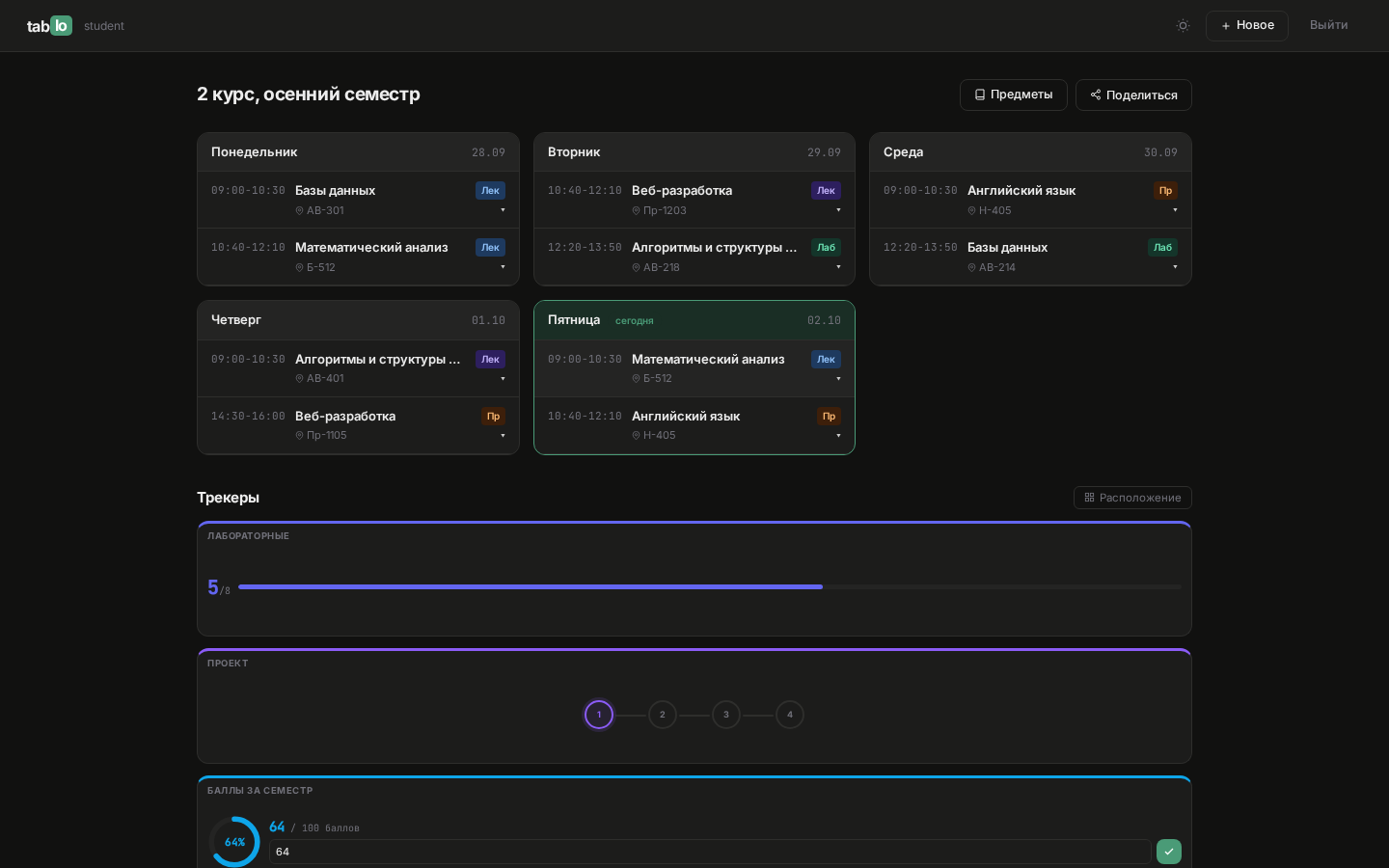

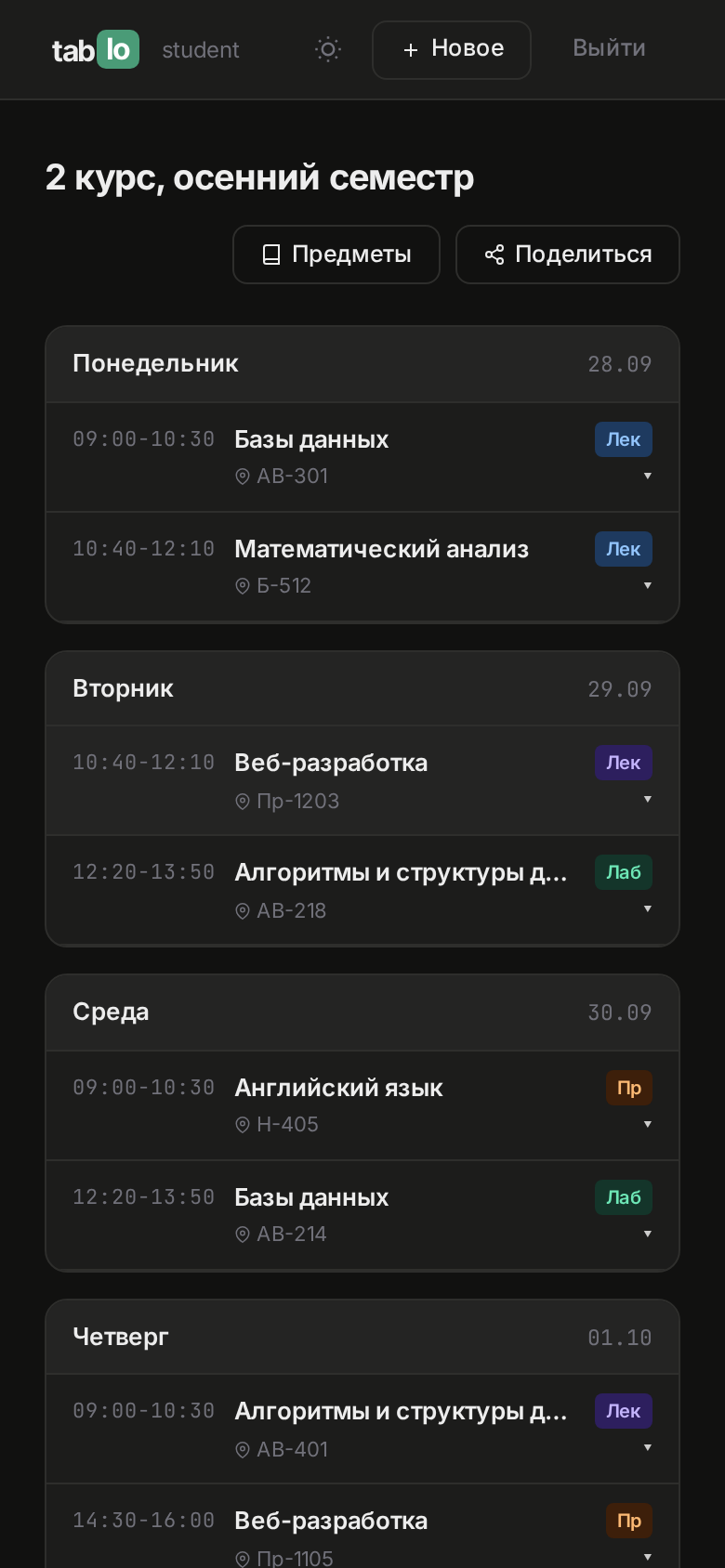

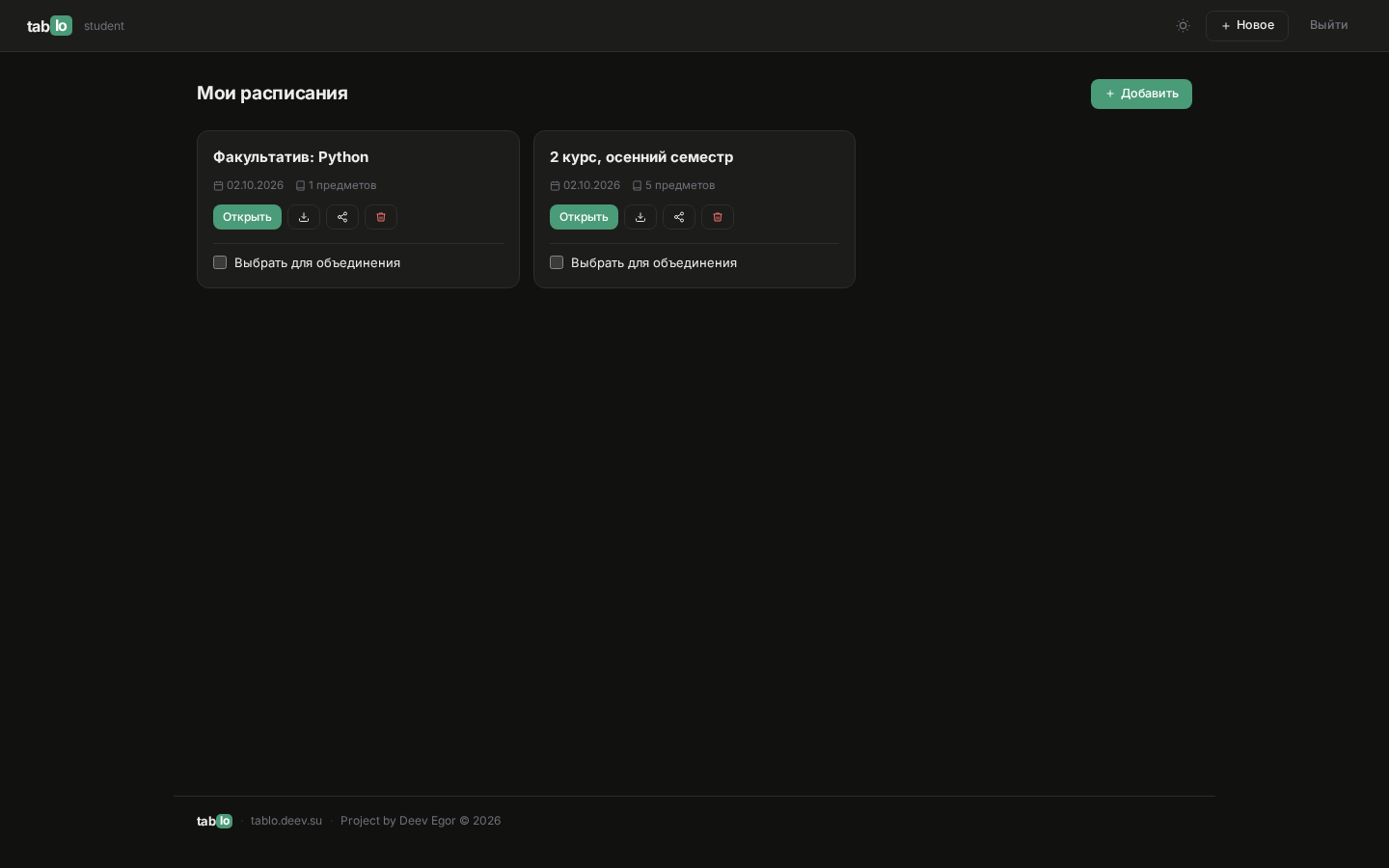

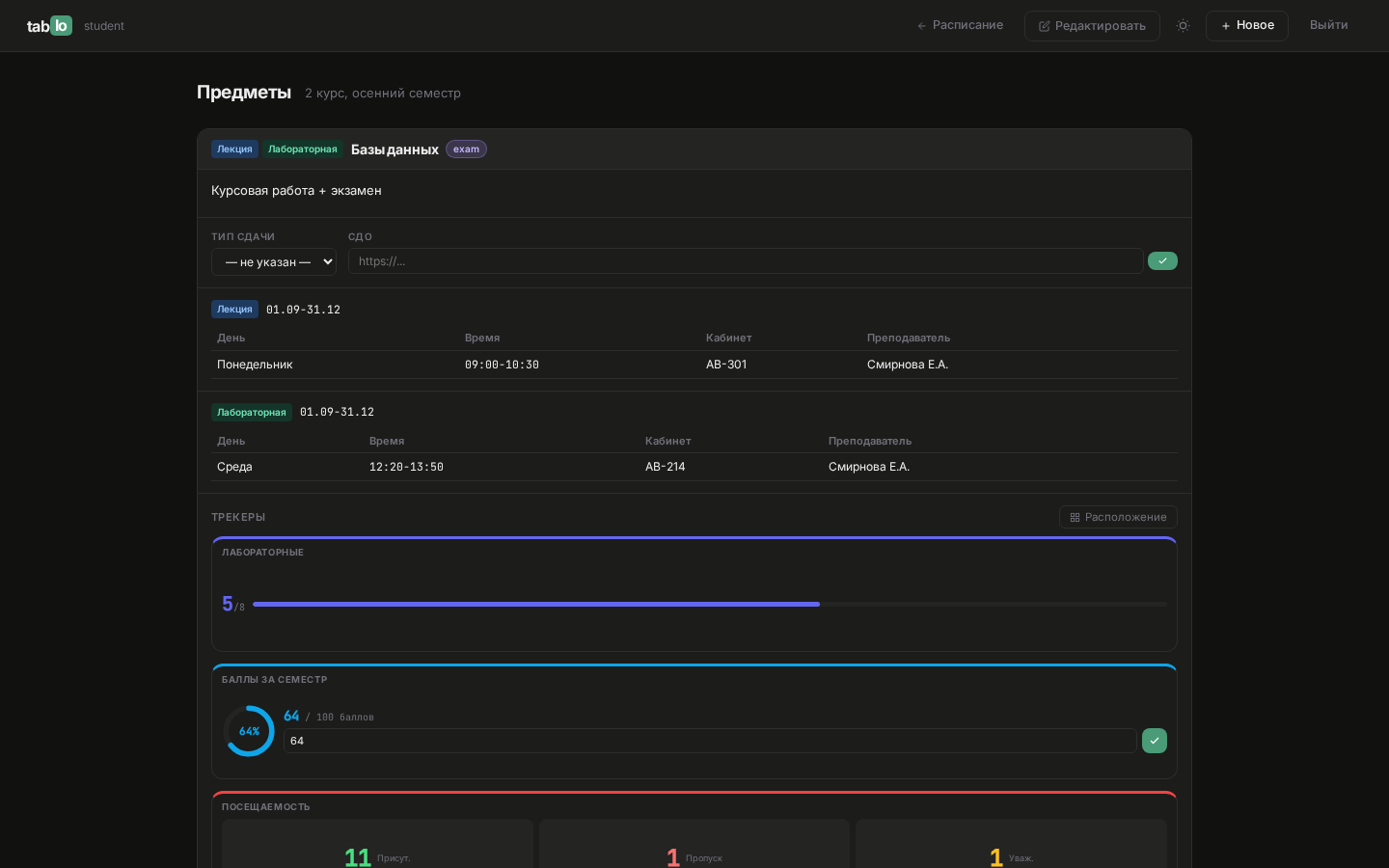

Screenshots

My schedules	Subject and trackers	Phone

How it works

flowchart LR
    B[Browser] --> F[Flask: auth · schedules · subjects · shares · export]
    F --> S[Services: ai_scan · ai_metrics · merge · export]
    F --> P[(PostgreSQL)]
    S --> A[OpenAI-compatible API]
    S --> C[Chromium via Playwright]

Details (in Russian):

• docs/architecture.md — structure, schedule format, trackers, access rules
• docs/deploy.md — Docker and the production setup
• docs/explanatory_note.pdf — coursework explanatory note

Deployment

tablo.deev.su runs on a VPS: gunicorn under systemd behind nginx with a Let's Encrypt certificate; PostgreSQL runs on a separate server; AI is Timeweb Cloud AI. GitHub Actions builds the Docker image on every v* tag and publishes it to GitHub Packages and to dcr.deev.su.

Development

pip install -r requirements-dev.txt
export TEST_DATABASE_URL=postgresql://tablo:tablo@localhost:5432/tablo_test
ruff check . && pytest

Tests run against a real PostgreSQL: access rules and export, share links, sign-in and open-redirect protection, period and time parsing, schedule merging. CI starts the database as a service container and runs the same checks on every push.

License

Coursework project (Moscow Polytechnic University, 2025/26). The code is open for study; there is no separate license.
